Model 405-nm

Download Brochure

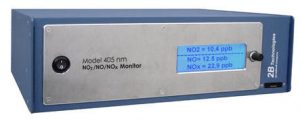

Model 405 nm NO2/NO/NOx Monitor

• US-EPA FEM-Approved and TÜV certified for NO2 Compliance Monitoring.
• Direct measurement of atmospheric nitrogen dioxide (NO2) by absorbance at 405 nm. Nitric oxide (NO) is measured by selective conversion with ~100% efficiency using the highly selective reaction of NO with ozone (O3). Total reactive oxides of nitrogen NOx is obtained by addition of NO and NO2.
• Concentration range 0-10,000 ppb (0-10 ppm) for NO2 and 0-2,000 ppb (0-2 ppm) for NO with high precision and accuracy.
• Unlike chemiluminescence instruments, does not require molybdenum or photolytic converter with highly variable efficiency

Black Carbon Photometer

Download Brochure

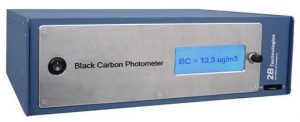

Black Carbon Photometer

• Direct measurement of total extinction (absorbance + scattering) due to particulate matter at two wavelengths, 405 nm and 880 nm. The 880-nm channel can be used to compute black carbon mass concentration. Extinction at the shorter 405 nm wavelength can be related empirically to PM2.5 in a given location.
• The BCP has high sensitivity, needs no preconcentration on a filter (unlike Aethalometers), and gives fast measurements of black carbon. The absorption cell is folded to give a long (2.1-meter) path length in a compact space.
• Useful for researchers studying the role of black carbon in air quality and climate, and for air quality managers interested in estimating community exposure risks.

Model HERMES

Download Brochure

Personal Mercury Monitor Model HERMES

• The World’s Smallest Mercury Monitor.
• The basic POM unit has dimensions of 4 × 3 × 1.5 inches and weighs only 340 g / 450 g without / with battery. It has a built in GPS so that mercury measurements may be logged continuously along with geographic location.
• Detects Ozone on the direct measurement principle of UV Absorption at 254 nm with an accuracy of 0.1 μg/m3  or 2% of reading.
• Applications include personal exposure monitoring for studies of health effects of ozone, monitoring and control of mercury in industrial settings, long-term monitoring at remote locations where power is highly limited among others.
